Motion Control Products
SilverMax™ 23 Frame X-Series Integrated Servo
The SilverMax X-Series is a fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications and power are accessed through a single 19 pin M16 connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A processor back-up power input and a hardware drive enable are also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 6A continuous per phase. The system is designed for use at +12.5VDC to +48VDC.

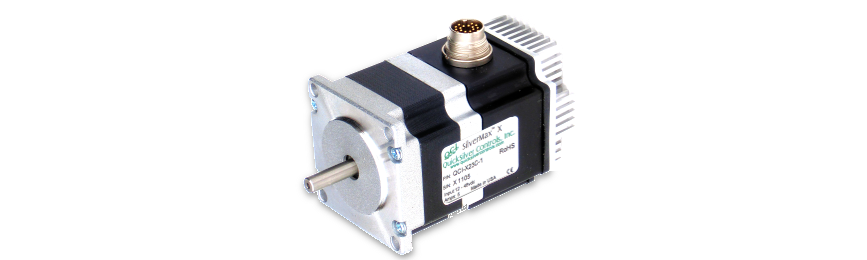

SilverMax QCI-X23C-1
Starting at $779.00
QCI-X23C-1 Features
- Continuous Torque: 75 oz-in (0.53 Nm)
- Peak Torque: 88 oz-in (0.62 Nm)
- Maximum Current: 4.0 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev

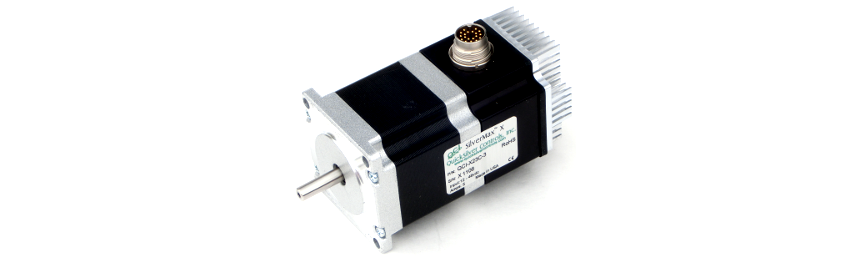

SilverMax QCI-X23C-3
Starting at $858.00
QCI-X23C-3 Features
- Continuous Torque: 170 oz-in (1.2 Nm)
- Peak Torque: 205 oz-in (1.45 Nm)
- Maximum Current: 4.0 A
- Maximum Speed: 3500 RPM
- Encoder Resolution: 8000 counts/Rev

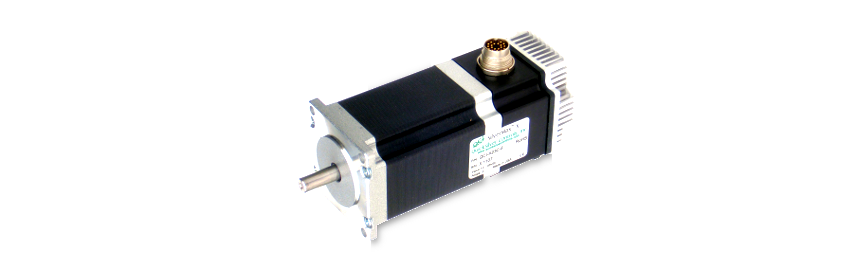

SilverMax QCI-X23C-6
Starting at $935.00
QCI-X23C-6 Features
- Continuous Torque: 300 oz-in (2.11 Nm)
- Peak Torque: 300 oz-in (2.11 Nm)
- Maximum Current: 3.5 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 8000 counts/Rev

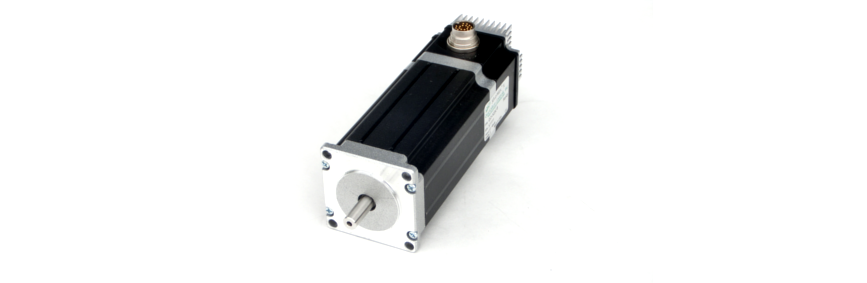

SilverMax QCI-X23C-8
Starting at $1012.00
QCI-X23C-8 Features
- Continuous Torque: 380 oz-in (2.68 Nm)
- Peak Torque: 500 oz-in (3.53 Nm)
- Maximum Current: 4.0 A
- Maximum Speed: 1000 RPM
- Encoder Resolution: 8000 counts/Rev
Power
- Input Voltage: +12.5VDC to +48VDC, regulated
- Input Current: 5.5A Max
Communications
- RS-485 multi-drop
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen®
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- All inputs have a light pull-up (~100k ohm to 3.3v)
- All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
- All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
- IO7 has a secondary circuit to handle 0 to +10v input signal range
- Hardware Drive Enable
- Processor Power Backup
- Single Cable: M16-19 connector
SilverMax™ 23 Frame XT-Series Integrated Servo
The SilverMax XT-Series is QuickSilver Controls' lower-cost fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications, I/O, and power are accessed through pluggable screw terminal blocks. The I/O interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog input. A hardware drive enable input is standard and a drive enable source is also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 6A continuous per phase. The system is designed for use at +12.5 to +48 VDC. Connectors are included.

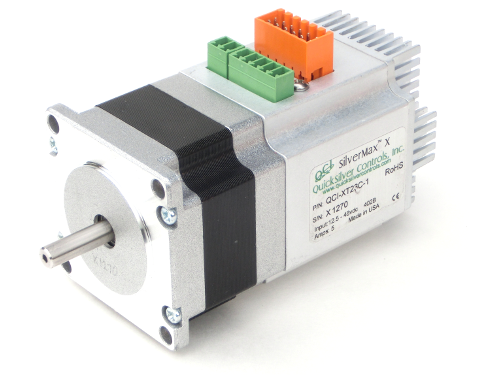

SilverMax QCI-XT23C-1
Starting at $739.50
QCI-XT23C-1 Features
- Continuous Torque: 75 oz-in (0.53 Nm)
- Peak Torque: 88 oz-in (0.62 Nm)
- Maximum Current: 4.0 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev

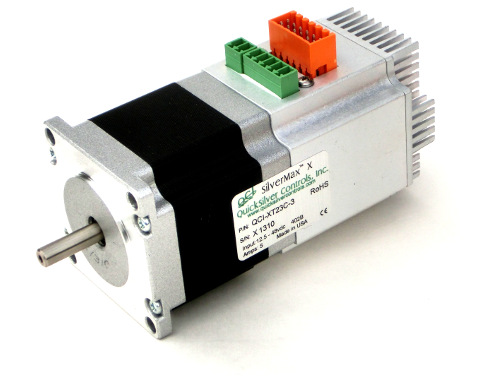

SilverMax QCI-XT23C-3
Starting at $819.00
QCI-XT23C-3 Features
- Continuous Torque: 170 oz-in (1.2 Nm)
- Peak Torque: 205 oz-in (1.45 Nm)
- Maximum Current: 4.0 A
- Maximum Speed: 3500 RPM
- Encoder Resolution: 8000 counts/Rev

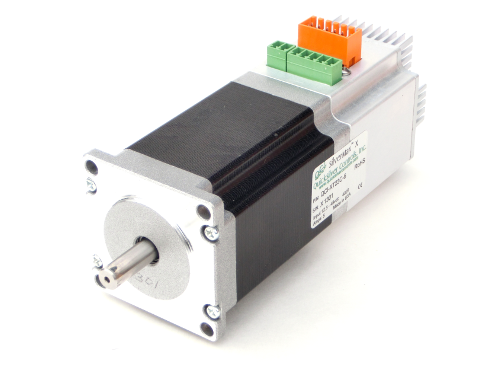

SilverMax QCI-XT23C-6
Starting at $895.00
QCI-XT23C-6 Features
- Continuous Torque: 300 oz-in (2.11 Nm)
- Peak Torque: 300 oz-in (2.11 Nm)
- Maximum Current: 3.5 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 8000 counts/Rev

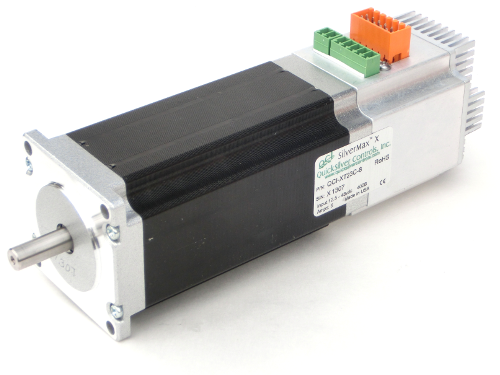

SilverMax QCI-XT23C-8
Starting at $969.00
QCI-XT23C-8 Features
- Continuous Torque: 380 oz-in (2.68 Nm)
- Peak Torque: 500 oz-in (3.53 Nm)
- Maximum Current: 4.0 A
- Maximum Speed: 1000 RPM
- Encoder Resolution: 8000 counts/Rev
Power
- Input Voltage: +12.5VDC to +48VDC, regulated
- Input Current: 5.5A Max
Communications
- RS-485 multi-drop
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen®
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- All inputs have a light pull-up (~100k ohm to 3.3v)
- All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
- All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
- IO7 has a secondary circuit to handle 0 to +10v input signal range
- Hardware Drive Enable
- Power, Comm., and I/O accessible via pluggable terminal blocks
SilverMax™ 34 Frame X-Series Integrated Servo
The SilverMax™ is a fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications and IO are accessed through a single 19 pin M16 connector. Power and external Clamp resistor are available through a 6 pin M23 connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog input. A processor back-up power input and a hardware drive enable are also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 20A continuous per phase. The system is designed for use at +12 to +72 VDC for driver power and 12-48v for processor power.
SilverMax QCI-X34CK-1
Starting at $1251.00
QCI-X34CK-1 Features
- Continuous Torque: 490 oz-in
- Maximum Current: 5 A
- Maximum Speed: 2000 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34CT-1
Starting at $1309.00
QCI-X34CT-1 Features
- Continuous Torque: 540 oz-in
- Maximum Current: 10 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34CK-2
Starting at $1413.00
QCI-X34CK-2 Features
- Continuous Torque: 1050 oz-in
- Maximum Current: 6.5 A
- Maximum Speed: 1500 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34CT-2
Starting at $1469.00
QCI-X34CT-2 Features
- Continuous Torque: 1048 oz-in
- Maximum Current: 10.5 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34HC-1
Starting at $1966.00
QCI-X34HC-1 Features
- Continuous Torque: 675 oz-in
- Peak Torque: 930 oz-in
- Maximum Current: 13.7 A
- Maximum Speed: 3000 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34HC-2
Starting at $2183.00
QCI-X34HC-2 Features
- Continuous Torque: 1300 oz-in
- Peak Torque: 1650 oz-in
- Maximum Current: 16.5 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34HC-3
Starting at $2432.00
QCI-X34HC-3 Features
- Continuous Torque: 1950 oz-in
- Peak Torque: 2500 oz-in
- Maximum Current: 16.0 A
- Maximum Speed: 2000 RPM
- Encoder Resolution: 16000 counts/Rev
SilverMax QCI-X34HC-4
Starting at $2795.00
QCI-X34HC-4 Features
- Continuous Torque: 2550 oz-in
- Peak Torque: 3250 oz-in
- Maximum Current: 14.5 A
- Maximum Speed: 1500 RPM
- Encoder Resolution: 16000 counts/Rev
Power
- Driver Input Voltage: +12VDC to +72VDC, regulated
- Driver Input Current: 20A Max
- Processor Input Voltage: +12VDC to +48DC, regulated
Communications
- RS-485 multi-drop
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen®
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- All inputs have a light pull-up (~100k ohm to 3.3v)
- All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
- All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
- IO7 has a secondary circuit to handle 0 to +10v input signal range
- Hardware Drive Enable
- Processor Power Backup
SilverSterling™ S2-IG-01
SilverSterling™ S2-IGH
SilverDust™ D2-IG
SilverDust™ D2-MG

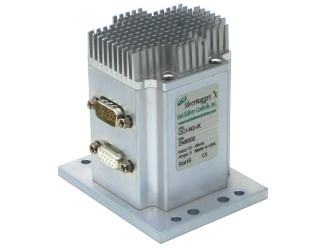

SilverNugget™ N2-IX

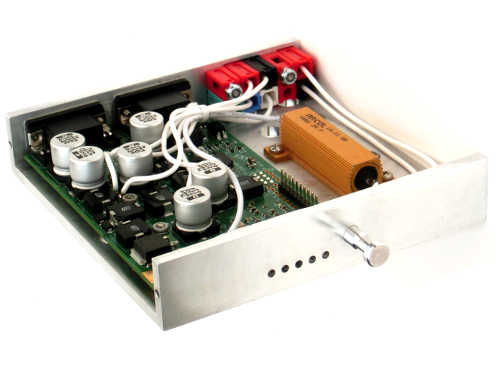

SilverSterling™ S3-IGH

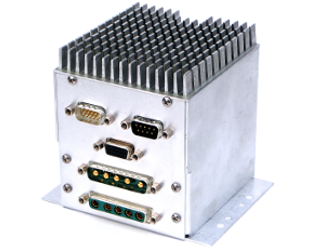

SilverNugget™ N3-IX
SilverSterling™ S2-IG Servo Controller and Driver
The SilverSterling S2-IG is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 11, 17, 23, and 24 frame, but is also designed to drive 3rd party DC brushed and voice coil motors. The SilverSterling features a 15 pin interface connector, SilverSterling Interface Port (SIP), including 4 I/O, CAN , RS-485, and system power input (12 to 48v).
The SilverSterling S2 is an inexpensive way to add servo control to an RS-485 serial capable device such as a PC, PLC or HMI. With ASCII, binary, and Modbus protocols, serial communications is a snap.
SilverSterling S2-IG-01
Starting at $378.00
S2-IG-01 Features
- Board Only (requires user to properly ground and heat sink motor driver)
- Designed to Minimize Space
- Popular with OEM’s

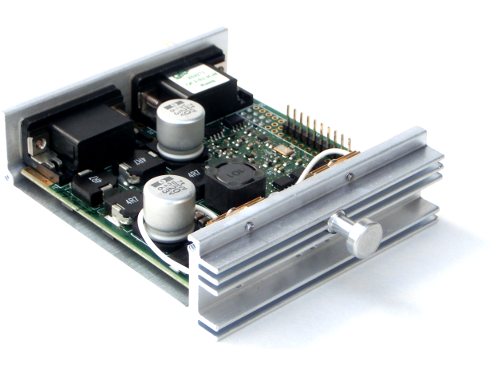

SilverSterling S2-IGH
Starting at $475.00
S2-IGH Features
- Open-Frame
- Designed to minimize space/wiring
- Designed to be mounted in a rack/cage

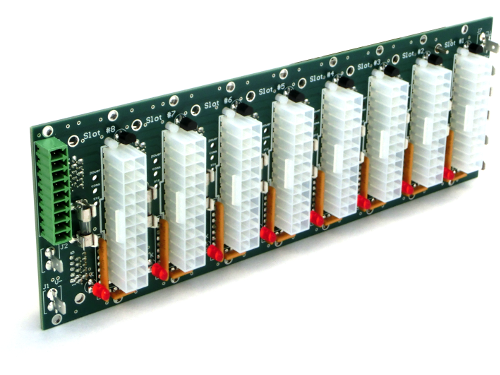

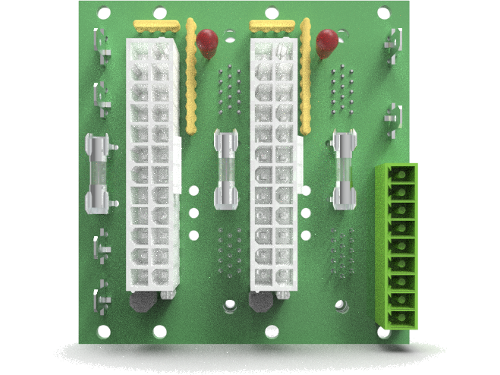

- Compatible with QCI-BO-BP2, QCI-BO-BP2, and QCI-BO-BP8
Compatible Motors
- QCI’s NEMA 11 M-Grade Motors
- QCI’s NEMA 17 I-Grade Motors
- QCI’s NEMA 23 I-Grade Motors
- QCI’s NEMA 23 Mosolver Motor
- QCI’s NEMA 24 I-Grade Motors
- One of QCI’s NEMA 34 I-Grade Motors (QCI-A34L-1)
- 3rd Party Voice Coils (6A peak)
- 3rd Party Brushed DC motors (6A peak)
- 3rd Party 3 Phase Brushless Motors (6A peak)
Power
- Input Voltage: +12 VDC to +48VDC, regulated
- Input Current: 4.5A Max
- Output Current: 3.5A RMS x 2 phases, 5A Peak; (6A Peak for DC motor); with adequate heat sink
- Built-in regenerative voltage clamp and power resistor
Communications
- RS-485
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen®
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 4 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- I/O#3 and I/O#4: Configurable as Analog Inputs (0 to 3.3V)
- I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
- I/O#1: Capture PWM Signal for RC Control
- SilverSterling Interface Port (SIP): DB15HD (pin)
- Motor-Encoder Interface Port: DB15HD (socket)
- Single Motor Cable
SilverDust™ D2-IG Servo Controller and Driver
The SilverDust D2 is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 11, 17, 23, and 24 frame motors. The SilverDust D2 features a 15 pin interface connector, SilverLode Multiple Interface (SMI) Port, including 7 TTL IO, RS-232/RS-485, and system power input.
SilverDust D2-IG-01
Starting at $571.00
D2-IG-01 Features
- Board Only
- Drive Enable Input
- Designed to Minimize Space
- CANopen Factory Option
- Popular with OEM’s
SilverDust D2-IG
Starting at $598.00
D2-IG Features
- Open-Frame
- DIN Mountable
- Drive Enable Input
- CANopen Factory Option
- Popular with OEM’s
SilverDust D2-IGF
Starting at $690.00
D2-IGF Features
- Closed-Frame (enclosure doubles as heat sink)
- DIN Mountable (use QCI-DIN1)
- Includes Processor Switch
- Ideal for Standalone Systems
SilverDust D2-IGK
Starting at $728.00
D2-IGK Features
- Closed-Frame (enclosure doubles as heat sink)
- DIN Mountable (use QCI-DIN1)
- Includes Processor Switch
- CANopen
- Ideal CANopen "slave" axis
- Use QCI-BO-K Breakout

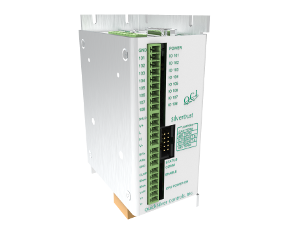

SilverDust D2-IGM
Starting at $948.00
D2-IGM Features
- Closed-Frame (enclosure doubles as heat sink)
- DIN Mountable (use QCI-DIN1)
- Includes Processor Switch
- CANopen
- Drive Enable Input
- 16 additional 24V I/Os
- Pluggable Terminials Blocks
- Ideal for Multi-Axis Applications
SilverDust D2-IGM-E
Starting at $1061.00
D2-IGM-E Features
- Closed-Frame (enclosure doubles as heat sink)
- DIN Mountable (use QCI-DIN1)
- Includes Processor Switch
- CANopen
- Drive Enable Input
- 16 additional 24V I/Os
- Pluggable Terminials Blocks
- Ideal for Multi-Axis Applications
- Ethernet for Networking Capability
Compatible Motors
- QCI’s NEMA 11 M-Grade Motors
- QCI’s NEMA 17 I-Grade Motors
- QCI’s NEMA 23 I-Grade Motors
- QCI’s NEMA 24 I-Grade Motors
- One of QCI’s NEMA 34 I-Grade Motors (QCI-A34L-1)
Power
- Input Voltage: +12 VDC to +48VDC, regulated
- Input Current: 4A Max
- Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink
- Built-in regenerative voltage clamp and power resistor
Communications
- RS232/RS-485 (software configurable)
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512® Factory Option
- CANopen® Factory Option
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)
- I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)
- I/O#1: Capture PWM Signal for RC Control
- SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
- Motor-Encoder Interface Port: DB15HD (socket)
- Single Motor Cable
SilverDust™ D2-MG Servo Controller and Driver
The SilverDust D2-MG is QuickSilver Controls’ smallest servo controller. The SilverDust D2-MG is specifically designed to drive 100 poles, 1.8° step motors. To best utilize the capabilities of the D2-MG, select a motor that has been optimized for micro stepping. Its open frame design and motor winding breakout is ideal for OEMs driving a 3rd party stepper motors in either open loop (no encoder) or closed loop. The D2-MG comes standard with an SMI port, including 7 TTL IO, RS-232/RS-485, and system power input.
SilverDust D2-MG-01
Starting at $544.00
D2-MG-01 Features
- Board Only
- Designed to Minimize Space
- CANopen Factory Option
- Popular with OEM’s
SilverDust D2-MG
Starting at $573.00
D2-MG Features
- Open-Frame
- DIN Mountable
- CANopen Factory Option
- Popular with OEM’s
Compatible Motors
- Support 3rd Party Stepper Motors (open-loop or closed-loop)
Power
- Input Voltage: +12 VDC to +48VDC, regulated
- Input Current: 4A Max
- Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink
Communications
- RS232/RS-485 (software configurable)
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512® Factory Option
- CANopen® Factory Option
Inputs/Outputs
- 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)
- I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)
- I/O#1: Capture PWM Signal for RC Control
- SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
- Supports Single-ended and Differential Encoders
Primary Encoder Resolution
- 500 Lines = 2000 counts/revolution (minimum recommended resolution)
- 1000 Lines = 4000 counts/revolution
- 2000 Lines = 8000 counts/revolution
- 4000 Lines = 16000 counts/revolution
SilverNugget™ N2-IX Servo Controller and Driver
The SilverNugget N2-IX is a servo controller/driver for QCI’s line of NEMA 11, 17, 23, and 24 frame, high torque, direct drive, servo motors. The N2-IX Servo Controller/Driver is designed to operate QCI’s I-Grade motors through a single motor interface cable, which carries motor power and encoder feedback. This single cable solution allows for easy installations and simple cable routing.
Power, communications, and I/O are accessed through a single DB15 high density interface connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A hardware drive enable is available as a factory option. All 7 I/O also have soft configurable pull-up/pull-down resistors, which may also be disabled, for more flexibility.
SilverNugget N2-IX
Starting at $769.00
N2-IX Features
- Closed-Frame (with heat sink)
- DIN Mountable
- Ideal for Standalone Systems
Compatible Motors
- QCI’s NEMA 11 M-Grade Motors
- QCI’s NEMA 17 I-Grade Motors
- QCI’s NEMA 23 I-Grade Motors
- QCI’s NEMA 24 I-Grade Motors
- One of QCI’s NEMA 34 I-Grade Motors (QCI-A34L-1)
Power
- Input Voltage: +12.5VDC to +48VDC, regulated
- Input Current: 5.5A Max
- Output Current: 5A RMS x 2 phases
Communications
- RS-485
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen® Factory Option
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 7 I/O, All 7 I/O support both LVTTL and analog signals (0 to 3.3v)
- I/O#7: Includes circuitry for 0 to +10v analog input
- I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
- Drive Enable Input Factory Option
- Supports Secondary External Encoder
- Output Internal Encoder Signals (Single-Ended or Differential)
- SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
- Motor-Encoder Interface Port: DB15HD (socket)
- Single Motor Cable
SilverSterling™ S3-IG Servo Controller and Driver
The SilverSterling S3 is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 34 frame motors and is also designed to drive 3rd party DC brushed, 3rd party voice coil, and 3rd party 3 phase brushless motors. The SilverSterling features a 15 pin interface connector, SilverSterling Interface Port (SIP), including 4 I/O, CAN , RS-485, and system power input (12 to 48v).
The SilverSterling S3 is an inexpensive way to add servo control to an RS-485 serial capable device such as a PC, PLC or HMI. With ASCII, binary, and Modbus protocols, serial communications is a snap.

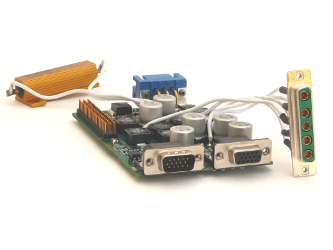

SilverSterling S3-IG-01
Starting at $815.00
S3-IG-01 Features
- Board Only (requires user to properly ground and heat sink motor driver)
- Designed to Minimize Space
SilverSterling S3-IGH
Starting at $968.00
S3-IGH Features
- Designed to minimize space/wiring
- Designed to be mounted in a rack/cage
- Compatible with QCI-BO-BP2, QCI-BO-BP2, and QCI-BO-BP8
Compatible Motors
- QCI’s NEMA 34 I-Grade Motors
- 3rd Party Voice Coils 20A peak)
- 3rd Party Brushed DC motors (20A peak)
- 3rd Party 3 Phase Brushless Motors (20A peak)
Power
- Input Voltage: +12 VDC to +48VDC, regulated
- Input Current: 20A Max
- Output Current: 10A RMS x 2 phases, 20 Amp peak; 20A Max for DC motors (using both phases in parallel); with adequate heat sink
- Built-in regenerative voltage clamp and power resistor
Communications
- RS-485
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen®
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 4 Digital LVTTL Inputs or Outputs (0 to 3.3v)
- I/O#3 and I/O#4: Configurable as Analog Inputs (0 to 3.3V)
- I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
- I/O#1: Capture PWM Signal for RC Control
- Isolated Drive Enable Input
- SilverSterling Interface Port (SIP): DB15HD (pin)
- Encoder Interface Port: DB15HD (socket)
- Motor Power Interface: DB-5W5 (socket)
SilverNugget™ N3-IX Servo Controller and Driver
The SilverNugget™ N3-IX is a servo motor controller/driver designed to operate QCI’s line of NEMA 34 frame I-Grade, high torque, direct drive, hybrid servo motors through two motor interface cables, motor power and encoder feedback. The N3-IX includes a Controller/Indexer, Digital Driver, and Active Power Clamp with internal clamp resistor. Serial communications and IO, as well as processor power are accessed through a High Density DB15 connector (SMI). CANopen is available on a separate DB 9 connector. Power and external clamp resistor are available through a 5 pin 5W5 connector.
The 15 pin SMI interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog input. A hardware drive enable are also included. Communication is available via CANopen and RS-485 serial, which may be operated simultaneously.
SilverNugget N3-IX
Starting at $1060.00
N3-IX Features
- Closed-Frame (with heat sink)
- Ideal for Standalone Systems
Compatible Motors
- QCI’s NEMA 34 I-Grade Motors
Power
- Input Driver Voltage: +12VDC to +72VDC, regulated
- Input Processor Voltage: +12VDC to +48VDC, regulated
- Input Driver Current: 25A Max
- Output Driver Current: 20A RMS x 2 phases
Communications
- RS-485
- 8-Bit ASCII
- 9-Bit Binary
- Modbus® RTU
- DMX-512®
- CANopen®
- Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
Inputs/Outputs
- 7 I/O, All 7 I/O support both LVTTL and analog signals (0 to 3.3v)
- I/O#7: Includes circuitry for 0 to +10v analog input
- I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
- Drive Enable Input
- Supports Secondary External Encoder
- Output Internal Encoder Signals (Single-Ended or Differential)
- SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
- Motor-Encoder Interface Port: DB15HD (socket)
NEMA 17 I-Grade Servo Motor with Encoder
The NEMA 17 motor produces up to 57 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/revolution. Available in IP50 and IP65.
QCI-A17-1
Starting at $409.00
QCI-A17-1 Specifications
- Continuous Torque: 21 oz-in
- Peak Torque: 29 oz-in
- Maximum Current: 1.3 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 8000 counts/Rev
QCI-A17H-3C
Starting at $379.00
QCI-A17H-3C Specifications
- Continuous Torque: 47 oz-in
- Peak Torque: 72 oz-in
- Maximum Current: 4.0 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev
Compatible Controllers
NEMA 23 I-Grade Servo Motor with Encoder
The NEMA 23 motor produces up to 240 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/revolution. Available in IP50 and IP65.

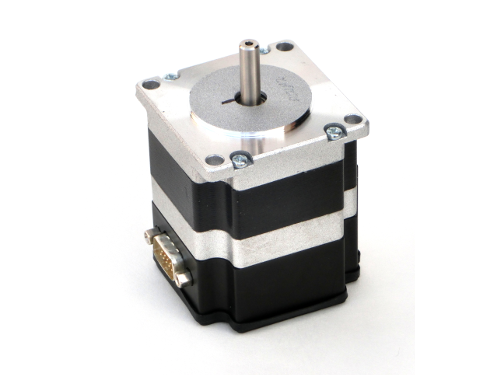

QCI-A23C-1
Starting at $312.00
QCI-A23C-1 Specifications
- Continuous Torque: 73 oz-in
- Peak Torque: 88 oz-in
- Maximum Current: 4.0 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev
QCI-A23C-3
Starting at $342.00
QCI-A23C-3 Specifications
- Continuous Torque: 170 oz-in
- Peak Torque: 205 oz-in
- Maximum Current: 4.0 A
- Maximum Speed: 3600 RPM
- Encoder Resolution: 8000 counts/Rev

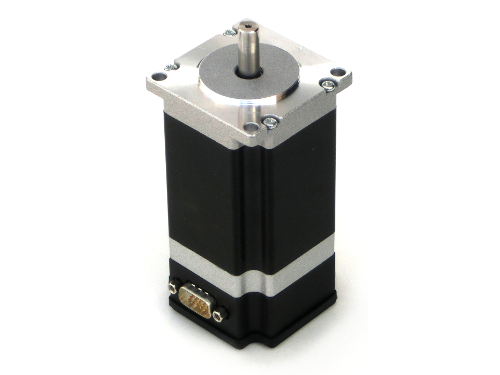

QCI-A23C-6
Starting at $387.00
QCI-A23C-6 Specifications
- Continuous Torque: 300 oz-in
- Peak Torque: N/A
- Maximum Current: 4.0 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 8000 counts/Rev

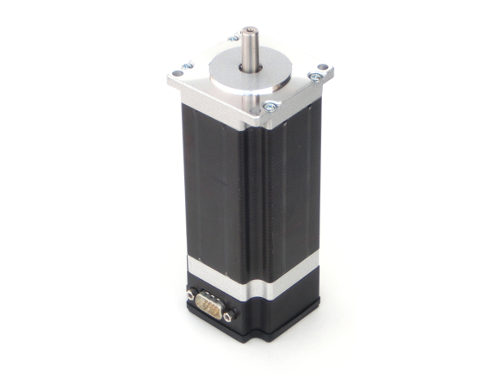

QCI-A23C-8
Starting at $413.00
QCI-A23C-8 Specifications
- Continuous Torque: 380 oz-in
- Peak Torque: 500 oz-in
- Maximum Current: 4.5 A
- Maximum Speed: 1000 RPM
- Encoder Resolution: 8000 counts/Rev
QCI-A23L-1C
Starting at $312.00
QCI-A23L-1C Specifications
- Continuous Torque: 44 oz-in
- Peak Torque: 65 oz-in
- Maximum Current: 4.0 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev
QCI-A23CK-3
Starting at $328.00
QCI-A23CK-3 Specifications
- Continuous Torque: 145 oz-in
- Peak Torque: 185 oz-in
- Maximum Current: 3.2 A
- Maximum Speed: 3000 RPM
- Encoder Resolution: 8000 counts/Rev
QCI-A23L-3C
Starting at $342.00
QCI-A23L-3C Specifications
- Continuous Torque: 95 oz-in
- Peak Torque: 138 oz-in
- Maximum Current: 3.5 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev
QCI-A23H-5
Starting at $448.00
QCI-A23H-5 Specifications
- Continuous Torque: 190 oz-in
- Peak Torque: 240 oz-in
- Maximum Current: 4.0 A
- Maximum Speed: 4000 RPM
- Encoder Resolution: 8000 counts/Rev
Compatible Controllers
NEMA 34 I-Grade Servo Motor with Encoder
The NEMA 34 motor is the largest frame motor we offer. Several motor stack sizes are available with torque output up to 3200 oz-in. The motor includes encoder feedback with a resolution of 16,000 counts/revolution. All motors availble in IP50, most motor sizes are available in IP65.
QCI-A34HC-1
Starting at $999.00
QCI-A34HC-1 Specifications
- Continuous Torque: 675 oz-in
- Peak Torque: 930 oz-in
- Maximum Current: 13.7 A
- Maximum Speed: 3000 RPM
- Encoder Resolution: 16000 counts/Rev
QCI-A34HC-2
Starting at $1249.00
QCI-A34HC-2 Specifications
- Continuous Torque: 1300 oz-in
- Peak Torque: 1650 oz-in
- Maximum Current: 16.5 A
- Maximum Speed: 2500 RPM
- Encoder Resolution: 16000 counts/Rev
QCI-A34HC-3
Starting at $1545.00
QCI-A34HC-3 Specifications
- Continuous Torque: 1950 oz-in
- Peak Torque: 2500 oz-in
- Maximum Current: 16.0 A
- Maximum Speed: 2000 RPM
- Encoder Resolution: 16000 counts/Rev
QCI-A34HC-4
Starting at $1849.00
QCI-A34HC-4 Specifications
- Continuous Torque: 2550 oz-in
- Peak Torque: 3250 oz-in
- Maximum Current: 14.5 A
- Maximum Speed: 1500 RPM
- Encoder Resolution: 16000 counts/Rev
Compatible Controllers
NEMA 17 Mosolver™ with built-in feedback sensor
The Mosolver is an innovative servo motion actuator which infuses a position feedback sensor into the very structure of a high pole count AC motor. This eliminates the need for costly encoder and resolvers. By combining the motor and resolver into a single package, the Mosolver enables a compact, inexpensive and robust closed-loop motion control. Visit the Mosolver website for more information.

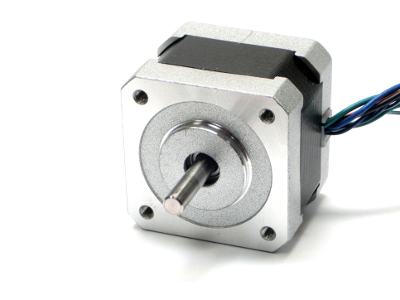

QCI-MV17C-1
Starting at $206.00
QCI-MV17C-1 Specifications
- Continuous Torque: 30 oz-in
- Maximum Current: 0.95A @ 48v; 1.3A @ 24v
- Maximum Speed: 2300 RPM
- Encoder Resolution: 32000 counts/Rev
Compatible Controllers
NEMA 23 Mosolver™ with built-in feedback sensor
The Mosolver is an innovative servo motion actuator which infuses a position feedback sensor into the very structure of a high pole count AC motor. This eliminates the need for costly encoder and resolvers. By combining the motor and resolver into a single package, the Mosolver enables a compact, inexpensive and robust closed-loop motion control. Visit the Mosolver website for more information.
QCI-MV23L-1
Starting at $206.00
QCI-MV23L-1 Specifications
- Continuous Torque: 40 oz-in
- Peak Torque: N/A
- Maximum Current: 2.5 A
- Maximum Speed: 3000 RPM
- Encoder Resolution: 32000 counts/Rev
Compatible Controllers
Accessories - Breakout Boards
Breakout boards are a great convenience when prototyping a system as wiring is simplified. Simply plug-in the breakout board to a controller and connect any wiring via screw terminal.
QCI-BO-BP2
Starting at $289.00
QCI-BO-BP2 Compatible With

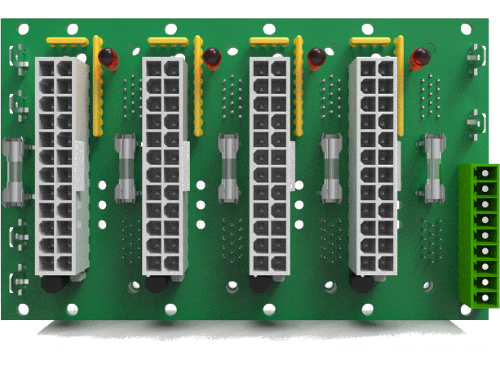

QCI-BO-BP4
Starting at $499.00
QCI-BO-BP4 Compatible With
QCI-BO-BP8
Starting at $778.00
QCI-BO-BP8 Compatible With
QCI-BO-X1
Starting at $179.00
QCI-BO-X1 Compatible With
- All SilverMax X-Series
QCI-BO-B
Starting at $45.00
QCI-BO-B Compatible With
- All SilverDust D2's (Except IGB)
QCI-BO-B1
Starting at $43.00
QCI-BO-B1 Compatible With
- All SilverDust D2's
- SilverNugget N2-IX & N2-MX
QCI-BO-S1
Starting at $44.50
QCI-BO-S1 Compatible With
- All SilverSterling S2’s
- All SilverSterling S3’s, if drive enable is not required

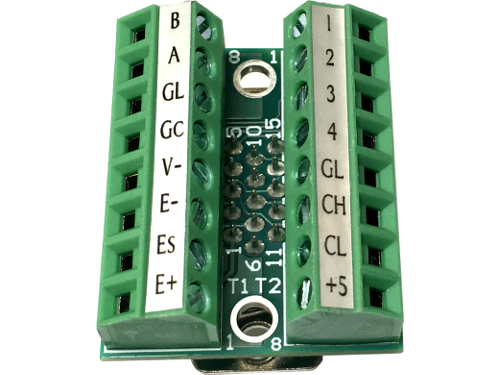

QCI-BO-S3E
Starting at $44.50
Dedicated hardware drive enable input
QCI-BO-S3E Compatible With
- SilverSterling S3-IG-01
- SilverSterling S3-IG
QCI-BO-B1A
Starting at $68.00
Converts 0 to +3.3v PWM to 0 to +5v Analog Output on IO#2
QCI-BO-B1A Compatible With
- All SilverDust D2’s
QCI-BO-M1
Starting at $50.75
Breakouts 15-Pin Motor Port into 5-pin motor connector and 10-pin encoder connector
QCI-BO-M1 Compatible With
- All SilverSterling S2’s
- All SilverDust D2’s
QCI-BO-K
Starting at $43.00
Provides onboard 120 ohm CAN termination resistor
QCI-BO-K Compatible With
- SilverDust D2-IGK
QCI-BO-B52
Starting at $101.00
Converts 7 LVTTL IO to 5 - 24V Inputs & 2 - 24V Outputs
QCI-BO-B52 Compatible With
- All SilverDust D2's (Except IGB)
Accessories - Communication
QuickSilver Controls offers a USB to RS-485 communications adapter. Refer to technical document QCI-TD053 Serial Communications for more information on our communication protocol.

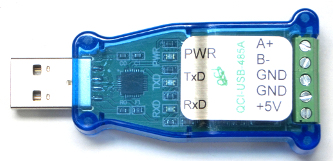

QCI-USB-RS485A
Starting at $47.25
USB To RS-485 Converter
QCI-USB-RS485S Compatible With
- All SilverMax X-Series Integrated Servos
- All SilverDust D2 Controllers
- All SilverSterling S2 and S3 Controllers
- All SilverNugget N2-IX and N2-MX Controllers
Accessories - Clamp Modules
QuickSilver Controls offer clamp modules for applications where braking, aggressive deceleration, or high inertial loads are present.
QCI-CLCF-04
Starting at $184.50
QCI-CLCF-04
- 20A Max
- Requires External Power Resistor(s)
- DIN Mountable
QCI-CLCF-04-R2
Starting at $203.00
QCI-CLCF-04-R2
- 20A Max
- Built-In 2 Ohm Power Resistor
- DIN Mountable
Accessories - Power Supplies
QuickSilver Controls offer single output 48V switching power supplies.
RSP-320-48
Starting at $85.50
RSP-320-48 Specifications
- 48V Output
- 320W
SE-1000-48
Starting at $264.00
SE-1000-48 Specifications
- 48V Output
- 1000W
RSP-1000-48
Starting at $366.00
RSP-1000-48 Specifications
- 48V Output
- 1000W
- Power Factor Correction
